Sample Project

You can download a simple sample project as a zip file

The zip contains the following structure:

└─ tenants/
   └─ example.com/
      └─ projects/
         └─ demo/
            └─ renderpptx/
               ├─ config.ion                             // renderpptx configuration file
               └─ powerpoint/
                  ├─ default.pptx                        // default pptx template
                  ├─ examples/
                  │  ├─ 6iamrk7toxjvvjfme6sjz4fc5u.pptx  // example pptx generated with the data
                  │  └─ data.xml                         // example data
                  └─ images/
                     ├─ KNIFE-001.jpg                    // some images used in data.xml
                     ├─ KNIFE-002.jpg
                     └─ KNIFE-002.jpg

We recommend downloading the zip file and inspecting it for yourself.

Slide Master​

We have three layouts:

  1. FrontPage : a static slide
  2. PRODUCT_MAIN : a dynamic slide with a product picture and description
  3. PRODUCT_DETAIL : a dynamic slide with product properties for a product

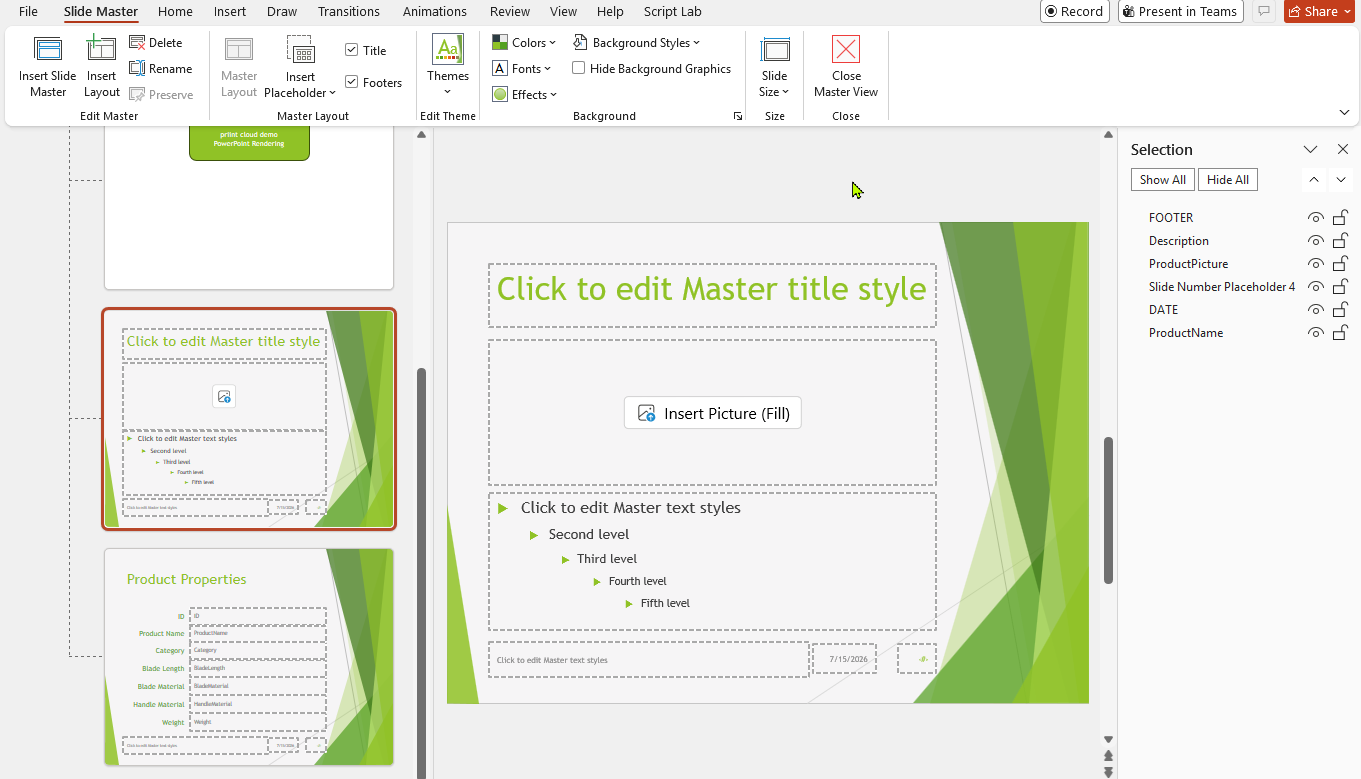

Master Slide View

Each product layout contains several placeholders.

XML Data​

The data first contains some document properties. Then follows a list of six slides. Two slides build a pair representing one product.

<?xml version="1.0" encoding="UTF-8" standalone="no"?>
<data lang="en">

    <metadata
            company="priint cloud"
            title="PowerPoint Rendering Demo"
            description="A simple list of AI generated Knifes with some product data"
    />

    <!-- product 1 -->
    <slide master="PRODUCT_MAIN">
        <placeholder name="FOOTER" content="(c) 2026 WERK II GmbH - www.priint.com"/>
        <placeholder name="ProductPicture" content="images/KNIFE-001.jpg"/>
        <placeholder name="ProductName" content="Premium Chef Knife"/>
        <placeholder name="Description"
                     content="Versatile chef knife designed for slicing, chopping, and dicing meat, vegetables, and herbs."/>
    </slide>
    <slide master="PRODUCT_DETAIL">
        <placeholder name="FOOTER" content="(c) 2026 WERK II GmbH - www.priint.com"/>
        <placeholder name="ID" content="KNIFE-001"/>
        <placeholder name="ProductPicture" content="images/KNIFE-001.jpg"/>
        <placeholder name="ProductName" content="Premium Chef Knife"/>
        <placeholder name="Category" content="Kitchen Knife"/>
        <placeholder name="BladeLength" content="20 cm"/>
        <placeholder name="BladeMaterial" content="Stainless Steel"/>
        <placeholder name="HandleMaterial" content="Olive Wood"/>
        <placeholder name="Weight" content="220 g"/>
        <placeholder name="DishwasherSafe" content="No"/>
        <placeholder name="Color" content="Silver and Brown"/>
    </slide>

    <!-- product 2 -->
    ...
</data>
